RETRACTED ARTICLE: A limit analysis of Mindlin plates using the cell-based smoothed triangular element CS-MIN3 and second-order cone programming (SOCP)

Asia Pacific Journal on Computational Engineering20141:6

https://doi.org/10.1186/2196-1166-1-6

Received: 9 October 2013

Accepted: 4 December 2013

Published: 29 April 2014

The Retraction Note to this article has been published in Asia Pacific Journal on Computational Engineering 2015 2:1

Abstract

Background

The paper presents a numerical procedure for kinematic limit analysis of Mindlin plate governed by von Mises criterion.

Methods

The cell-based smoothed three-node Mindlin plate element (CS-MIN3) is combined with a second-order cone optimization programming (SOCP) to determine the upper bound limit load of the Mindlin plates. In the CS-MIN3, each triangular element will be divided into three sub-triangles, and in each sub-triangle, the gradient matrices of MIN3 is used to compute the strain rates. Then the gradient smoothing technique on whole the triangular element is used to smooth the strain rates on these three sub-triangles. The limit analysis problem of Mindlin plates is formulated by minimizing the dissipation power subjected to a set of constraints of boundary conditions and unitary external work. For Mindlin plates, the dissipation power is computed on both the middle plane and thickness of the plate. This minimization problem then can be transformed into a form suitable for the optimum solution using the SOCP.

Results and Conclusions

The numerical results of some benchmark problems show that the proposal procedure can provide the reliable upper bound collapse multipliers for both thick and thin plates.

Keywords

Limit analysis Upper bound Mindlin plates Cell-based smoothed three-node Mindlin plate element (CS-MIN3) Smoothed finite element methods (S-FEM) Second-order cone programming (SOCP)

Background

Limit analysis is a branch of plasticity analysis and plays an important role in determining the limit loads of a structure. The fundamental theorems of limit analysis ignore the evolutive elastoplastic computations but focus to determine the upper or lower bound loads which cause the plastic collapse of structures.

Using analytical methods and different yield criteria such as the maximum principal stress criterion, Tresca criterion, and von Mises criterion, many scholars derived the analytical solutions for the limit loads of plates. Some systematic and comprehensive summaries can be found in the monographs of Hodge [1], Save and Massonnet [2], Zyczkowski [3], Xu and Liu [4], Lubliner [5], Yu et al. [6], etc. Using numerical methods, some early works for the limit loads of plates can be mentioned such as those by Hodge and Belytschko [7] and Nguyen [8]. However, due to the lack of efficient optimization algorithms and the limit of the computing power, the numerical limit analysis of plates seems to be ignored for a certain times.

Recently, the interest of scientists in numerical limit analysis [915] has been resurged, principally thanks to the rapid development of efficient optimization algorithms and the continuous improvement in computer facilities. Current research is focusing on developing numerical limit analysis tools which are efficient and robust for the practice usage of engineers. In the numerical limit analysis, once the stress or displacement/velocity fields are approximated and the bound theorems are applied, the limit analysis becomes a problem of optimization involving either linear programing (LP) or nonlinear programming (NLP) which can be solved respectively by the available LP or NLP algorithms [1623].

For the LP algorithms, some significant contributions have been published such as the active set LP algorithm by Sloan [16], the bespoke interior-point algorithm for LP by Andersen and Christiansen [17], and the commercial LP code XA by Pastor et al. [18]. For the NLP algorithms, some recently important contributions can be mentioned such as the algorithm based on feasible directions by Zouain et al. [10] or by Lyamin and Sloan [19], the algorithm based on the interior-point method by Andersen et al. [20] or by Krabbenhoft and Damkilde [21], and the general-purpose NLP codes CONOPT and MINOS by Tin-Loi and Ngo [22]. Recently, one of the most efficient NLP algorithms based on the primal-dual interior-point method was proposed by Andersen et al. [23]. The algorithm can be applied to von Mises-type yield functions and can handle problems with any nonlinear yield functions. The algorithm is implemented in second-order cone programming (SOCP) [24] of the commercial software MOSEK [25] and has been applied for the limit loads of some limit analysis problems [26, 27].

Using such LP and NLP algorithms for the numerical limit analyses of plate structures, many significant researches have been published. For the Kirchhoff plates, we can list the works by Christiansen and Larsen [28], Turco and Caracciolo [29], Corradi and Vena [30], Corradi and Panzeri [31], Tran et al. [32], Le et al. [3335], and Zhou et al. [36]. For the Mindlin plates, we can list the works by Capsoni and Corradi [37] and Capsoni and Vicente da Silva [38]. In comparison, it is seen that many studies in the literature are concerned with the limit analysis of Kirchhoff plates, while the literature related to those of Mindlin plates is somehow still limited. This paper hence aims to further contribute a numerical limit analysis of Mindlin plates by using a Mindlin plate element proposed recently together with the SOCP.

In the other front of the development of numerical methods, Liu and Nguyen Thoi [39] have integrated the strain smoothing technique [40] into the finite element method (FEM) to create a series of smoothed FEMs (S-FEMs) such as cell/element-based smoothed FEM (CS-FEM) [4143], node-based smoothed FEM (NS-FEM) [4446], edge-based smoothed FEM (ES-FEM) [47, 48], face-based smoothed FEM (FS-FEM) [49], and a group of alpha-FEM [5053]. Each of these smoothed FEMs has different properties and has been used to produce desired solutions for a wide class of benchmark and practical mechanics problems. Several theoretical aspects of the S-FEM models have been provided in [54, 55]. The S-FEM models have also been further investigated and applied to various problems such as plates and shells [5668], piezoelectricity [69, 70], fracture mechanics [71], visco-elastoplasticity [7274], limit and shakedown analysis for solids [7577], and some other applications [78, 79].

Among these S-FEM models, the CS-FEM [39, 41] shows some interesting properties in solid mechanics problems. Extending the idea of the CS-FEM to plate structures, Nguyen-Thoi et al. [80] have recently formulated a cell-based smoothed three-node Mindlin plate element (CS-MIN3) for static and free vibration analyses of isotropic Mindlin plates by incorporating the CS-FEM with the original MIN3 element [81]. In the CS-MIN3, each triangular element will be divided into three sub-triangles, and in each sub-triangle, the MIN3 is used to compute the strains. Then, the strain smoothing technique on whole the triangular element is used to smooth the strains on these three sub-triangles. The numerical results showed that the CS-MIN3 is free of shear locking and achieves high accuracy compared to the exact solutions and other existing elements in the literature.

In this paper, the CS-MIN3 is further extended to the kinematic limit analysis of Mindlin plates governed by the von Mises criterion. The CS-MIN3 is combined with a SOCP to determine the limit load of the plates. The limit analysis problem of Mindlin plates is formulated by minimizing the dissipation power subjected to a set of constraints of boundary conditions and unitary external work. For Mindlin plates, the dissipation power is computed on both the middle plane and the thickness of the plate. This minimization problem can then be transformed into a form suitable for the optimum solution using the SOCP. The accuracy and reliability of the proposed method are verified by comparing its numerical solutions with those of other available numerical results.

Methods

Limit analysis of Mindlin plates-kinematic formulation

We now consider a rigid-perfectly plastic plate identified by its middle plane Ω, the thickness h, and the boundary Γ = Γ u  Γ t where Γ t is the boundary subjected to a surface traction and Γ u is the constrained boundary. Let w be the transverse displacement (deflection) and be the vector of rotations, in which β x and β y are the rotations of the middle plane around the y-axis and x-axis, respectively, with the positive directions defined as shown in Figure 1.

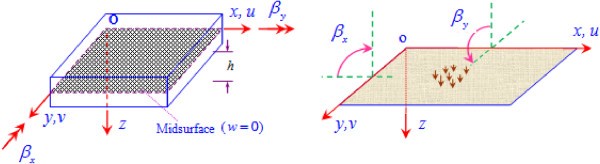

Figure 1

Mindlin plate and positive directions of the displacement w and two rotations β x and β y .

The unknown vector of three independent field variables at any point in the problem domain of the Mindlin plates can be written as
(1)
The curvature of the deflected plate κ and the shear strains γ are defined, respectively, as
(2)
where and L d is a differential operator matrix defined by
(3)
Because the material in the limit analysis is assumed to be rigid-perfectly plastic, the bending stress σ and transverse shear τ are confined within the convex domain Φ(σ, τ) ≤ 0, where Φ(σ, τ) is the yield function. If von Mises's criterion is adopted, we have
(4)
where σ 0 is the yield stress and
(5)
Deformations cannot occur as long as Φ(σ, τ) < 0, while plastic flow may develop when Φ(σ, τ) = 0. In this case, strain rates and obey the normality flow rule as
(6)

Equation 6 might impose restrictions on strain rates, by confining them within a convex domain , the sub-space spanned by the outward normals to the yield surface.

Let represent the admissible stresses contained within the convex yield surface and represent the stress point on the limit surface associated to any given strain rate through the plasticity condition, then the plastic dissipation power (per unit volume) is defined by Hill's maximum principle as
(7)
The plastic dissipation power is a uniquely defined function of strain rates, and its explicit expression is available for a number of yield criteria [5]. If von Mises's criterion is adopted, one has [37]
(8)
with
(9)
Using the relation ϵ = z κ between the membrane strain ϵ with the curvature κ, Equation 8 can be rewritten as
(10)
The internal dissipation power for the two-dimensional plate domain Ω with the thickness h is now expressed as
(11)
The limit analysis of the Mindlin plate considers a rigid-perfectly plastic plate subjected to body forces on its middle plane Ω and to surface tractions on the boundary Γ t . The constrained boundary Γ u is fixed. Loads now are defined as basic values b and , affected by a load multiplier λ. Then, the kinematic theorem of limit analysis states that the limit value λ + (collapse multiplier) of λ is the optimal value of the minimization problem [37]
(12)
subject to
(13)

Equations 13(a) and 13(b) express the compatibility of the constrained boundary and the strain rate with a velocity field , respectively, and Equation 13(c) denotes the power of basic loads, which is normalized to unity.

Note that in Equation 11, the dissipation power is a positively homogeneous function of degree 1 in the strain rates and not differentiable at strain rate zero. Equations 13(a) to 13(c) hence bring the computation of the collapse multiplier to the search of the minimum of a convex but not everywhere differentiable functional. The functional minimized in Equation 12 is only differentiable in the region Ω p where plastic flow develops, but not so in the remaining portion Ω r of the plate, which keeps rigid in the mechanism, and hence, the minimum does not correspond to a stationary point.

Brief on kinematic formulation of CS-MIN3 for Mindlin plates

Kinematic formulation of the MIN3 for Mindlin plates

In the original MIN3 [81], the rotations are assumed to be linear through the rotational degrees of freedom (DOFs) at three nodes of the elements, and the deflection is initially assumed to be quadratic through the deflection DOFs at six nodes (three nodes of the elements and three mid-edge points). Then, by enforcing continuous shear constraints at every element edge, the deflection DOFs at three mid-edge points can be removed and the deflection is now approximated only by vertex DOFs at three nodes of the elements. The MIN3 element can hence overcome shear locking and produces convergent solutions. In this paper, we just brief on the kinematic formulation of the MIN3 which is necessary for the kinematic formulation of the CS-MIN3.

Using a mesh of three-node triangular elements, the approximation of displacement flow for an element Ω e shown in Figure 2 can be written as
(14)
where , I = 1, 2, 3, is the flow vector of the nodal degrees of freedom of associated to node I and N I (x), I = 1, 2, 3, are linear shape functions at node I.
Figure 2

Three-node triangular plate element in the MIN3.

The curvature rates of the deflection flow in an element are then defined by
(15)
where is the vector of nodal displacement flow of the element and B contains the constants which are derived from the derivatives of the shape functions as
(16)

in which N ,x and N ,y are the matrices of derivatives of the shape functions in the x-direction and y-direction, respectively.

The shear strain rates of the deflection flow in an element are then defined by
(17)
where
(18)
in which L ,x , L ,y , H ,x , and H ,y are the matrices of derivatives of the shape functions in the x-direction and y-direction, respectively, and and are the vectors of shape functions, with L I and H I , I = 1, 2, 3, given by
(19)
(20)

in which a i and b i   (i = 1 ÷ 3) are the geometric distances as shown in Figure 2.

Kinematic formulation of CS-MIN3

In the CS-MIN3 [80], the domain discretization is the same as that of the MIN3 using N n nodes and N e triangular elements. However, in the formulation of the CS-MIN3, each triangular element Ω e is further divided into three sub-triangles Δ1, Δ2, and Δ3 by connecting the central point O of the element to three field nodes as shown in Figure 3.
Figure 3

Three sub-triangles ( Δ 1 , Δ 2 , and Δ 3 ) created from the triangle 1-2-3 in the CS-MIN3.

In the CS-MIN3, we assume that the vector of displacement flow at the central point O is the simple average of three vectors of displacement flow , , and of three field nodes as
(21)
On the first sub-triangle Δ1 (triangle O-1-2), the linear approximation is constructed by
(22)

where is the vector of displacement flow of nodal degrees of freedom of the sub-triangle Δ1 and is the vector containing the linear shape functions at nodes O, 1, 2 of the sub-triangle Δ1.

The curvature rates of the deflection flow and the altered shear strain rates in the sub-triangle Δ1 are then obtained by
(23)
(24)

where and are respectively computed similarly as the matrices B and S of the MIN3 in Equations 16 and 18 but with two following changes: (1) the coordinates of three-node , i = 1, 2, 3, are replaced by x O , x 1, and x 2, respectively, and (2) the area A e is replaced by the area of sub-triangle Δ1.

Substituting in Equation 21 into Equations 23 and 24, and then rearranging, we obtain
(25)
(26)

Similarly, by using cyclic permutation, we easily obtain the curvature rates of the deflection flow , the shear strains , and matrices and , j = 2, 3, for the second sub-triangle Δ 2 (triangle O-2-3) and third sub-triangle Δ 3 (triangle O-3-1), respectively.

Now, by applying the cell-based strain smoothing operation in the CS-FEM [39, 41], the bending and shear strain rates and , j = 1, 2, 3, are used to create the smoothed bending and smoothed shear strain rates and , respectively, on the triangular element Ω e , such as
(27)
(28)
where Φ e (x) is a given smoothing function that satisfies the unity property Using the following constant smoothing function
(29)
where A e is the area of the triangular element, the smoothed bending strain rate and the smoothed shear strain rate in Equations 27 and 28 become
(30)
Substituting and , j = 1, 2, 3, into Equation 30, the smoothed bending strain rate and the smoothed shear strain rate are expressed by
(31)
where and are the smoothed bending and shear strain gradient matrices given by
(32)

Discretization of kinematic formulation by CS-MIN3

In Equation 11, when c s becomes small at the thin plate limit, the last term is very nearly singular and numerical integration is preferable. To avoid inaccuracies associated with the point z = 0, twice the integral over half thickness is considered, and Equation 11 can be rewritten as [37]
(33)

where ζ = 4z/h − 1 and ζ g and W g are the usual Gauss integration point coordinates and weights, respectively; n G is the number of Gauss integration points; m 0 = σ 0 h 2/4 is the plastic moment of resistance per unit width of the plate of thickness h.

By discretizing the domain Ω into n e triangular plate elements such that and Ω i  ∩ Ω j  = , i ≠ j, and using the kinematic formulation of the CS-MIN3 as presented in the ‘Brief on kinematic formulation of CS-MIN3 for Mindlin plates’ section, the plastic dissipation in Equation 33 is expressed as
(34)

where and in which and are computed at the Gauss points by Equation 31.

Combining Equations 9 and 31, and are now expressed explicitly as
(35)
The plastic dissipation in Equation 34 is hence expressed as
(36)
where
(37)
Equation 37 can be rewritten in the matrix form as
(38)
where
(39)
and
(40)
(41)
Note that using Equations 31 and 32, the vector y i in Equation 40 can be rewritten in the form of the discrete element displacement flow vector
(42)
where
(43)

and and are the components extracted, respectively, from the matrices and in Equation 32.

Similarly, the external energy in Equation 13(c) and the boundary condition of displacement flow Equation 13(a) can be combined and rewritten in the matrix form of the discrete system displacement flow vector as [33]
(44)
Combining Equations 36, 38, 42, and 44, the minimization problem (12) associated with the CS-MIN3 now becomes the problem of finding the optimal value λ + such that
(45)
subjected to the constraints
(46)

The minimization problem (45) is a convex programming problem in which the objective function is a positively homogeneous function of degree 1 in the variables z i (or in the strain rates) and is not differentiable at any points in the rigid domain which do not undergo plastic flow (||z i || = 0). The minimization problem (45) is also categorized into the group of the problems of minimizing a sum of Euclidean norms which has a natural dual maximization formulation [23].

For solving this group of problem, one of the well-known approaches used is to replace the terms ||z i || in the objective by the differentiable quantity , where μ is a fixed positive number. This method is robust but converges slowly as μ → 0 because some of the norms in the objective function have zero as their optimal value [23].

Recently, Andersen et al. [24] recently employed the aspect of duality of the problem to propose a primal-dual interior-point method for solving a homogeneous self-dual model of conic quadratic programming. In this method, the terms ||z i || are also replaced by , but the quantity μ is treated as an extra variable, whose value is determined by duality estimates. Using this method, the minimization problem (45) is now solved rapidly and accurately even if there are a large number of variables and many norms ||z i || are zero at a solution point. Also, the primal-dual interior-point method is recently integrated in an available general software (e.g., MOSEK [25]) which specializes second-order cone programming (SOCP) problems [24]. The limit analysis problem can hence be solved efficiently using such software.

The minimization problem (45) is hence rewritten in the form of a standard SOCP problem by introducing auxiliary variables t i , i = 1, 2, …, n e  × n G , such that
(47)
subjected to the constraints
(48)

where Equation 48(c) represents quadratic cone constraints. With the form of standard SOCP problem, the minimization problem (47) for finding the collapse multipliers of the Mindlin plates can now be solved efficiently by using the software MOSEK.

Note that the formulation of the minimization problem of the plastic dissipation power in the form of standard SOCP problem was also presented in [33, 35]; however, the form of standard SOCP problem in these references is only for Kirchhoff plates.

Also, note that in the kinematic limit analysis of plates, the ability to obtain the strict upper bound depends not only on the efficient solution of the arising optimization problem but also on the effectiveness of the elements employed. It is required that the flow rule needs hold throughout each element. For the C1-continuous elements, this requirement can be satisfied naturally. However, for the C0-continuous elements, it can be violated due to the appearance of plastic hinge lines on boundaries of elements. In order to overcome this violation, the internal work dissipated in resulting hinge lines on boundaries of elements should be taken into account as done by Hodge and Belytschko [7] and Makrodimopoulos and Martin [82]. In this paper, the CS-MIN3 uses only three-node triangular plate elements and hence belongs to the C0-continuous elements. However, for the sake of simplicity of using the CS-MIN3 in the limit analysis of plates, we can ignore considering the internal work dissipated in resulting hinge lines on boundaries of elements. It is therefore no longer possible to guarantee that the solution obtained from the minimization problem (47) is a strict upper bound on the collapse multiplier. However, using the smoothed strain rates which are constant over elements, the flow rule only needs to be enforced at any point in each element, and it is guaranteed to be satisfied almost everywhere in the problem domain. Therefore, the computed collapse load obtained using the proposed method can still be reasonably considered as an upper bound on the actual value.

Results and discussion

The number performance of the proposed limit analysis will now be tested by examining a number of benchmark uniformly loaded or point-loaded plate problems for which numerical solutions have been published in the literature. For all the examples considered, the following were assumed: yield stress σ p  = 250 MPa and yield moment M p  = σ p t 2/4.

Square plates

We now consider a square plate subjected to a uniform out-of-plane pressure loading (with basic load p = M p /L 2) with two different boundary conditions: (1) clamped supports on all edges as shown in Figure 4a and (2) simply supported supports on all edges as shown in Figure 4b. For this problem, the full plate is considered and the upper bound reference solution using quadrilateral elements with 867 degrees of freedom (DOFs) can be found in [37, 38]. Figure 4c illustrates four forms of discretization of the plate using triangular elements.
Figure 4

Square plate models and their discretizations using triangular elements. (a) Clamped plate. (b) Simply supported plate. (c) Four forms of discretization of the plate using triangular elements.

In this example, firstly, the thickness of the plate is chosen such that the ratio L/t = 10 and the plate is discretized by the mesh 12 × 12 with 507 DOFs. We first consider the effect of the collapse multipliers when the number of Gauss points along the half of the thickness of the plate is changed from 1 point to 7 points. Figures 5 and 6 show the convergence of the collapse multipliers versus the different numbers of Gauss points for both cases of boundary conditions by MIN3 and CS-MIN3. The results show that both solutions of the CS-MIN3 and MIN3 converge to the upper bound reference solution [38] when the number of Gauss points increases, but those of the CS-MIN3 are more accurate than those of the MIN3. This hence implies that the CS-MIN3 can provide the reliable upper bound collapse multipliers for the Mindlin plates when a suitable number of Gauss points is used along the half of the thickness of the plate. In these analyses, it is seen that the usage of 6 Gauss points is the most suitable for both cases of boundary conditions and hence will be recommended for default employing in the CS-MIN3 (and also in the MIN3) for all numerical examples in this paper.
Figure 5

Convergence of collapse multipliers of the clamped square plate versus the number of Gauss points.

Figure 6

Convergence of collapse multipliers of the supported square plate versus the number of Gauss points.

Next, the convergence of the collapse multipliers versus various degrees of freedom of the system is considered. The numbers of degrees of freedom of the system are now changed from 75 (corresponding to the mesh 4 × 4) to 507 (corresponding to the mesh 12 × 12). The results for both cases of boundary conditions by the CS-MIN3 and MIN3 are listed in Table 1 and plotted in Figures 7 and 8, respectively. The results show that both solutions of the CS-MIN3 and MIN3 converge to the reference solutions when the number of degrees of freedom increases. In addition, Figures 9 and 10 show the patterns of displacement and plastic energy dissipation at collapse for both cases of boundary conditions by using the CS-MIN3. It can be observed that the forms of the yield lines are clearly identified reasonably from these dissipation patterns. These results hence imply that the CS-MIN3 can provide the reliable upper bound collapse multipliers for the Mindlin plates when a suitable number of degrees of freedom is used. Note that in the above analyses, the results of the CS-MIN3 are more accurate than those of the MIN3, especially in the coarse meshes. This hence implies that the cell-based strain smoothing technique in the CS-MIN3 is very necessary to improve the accuracy of the MIN3 in the limit analysis of Mindlin plates.
Table 1

Convergence of collapse multipliers of clamped square plate subjected to uniform pressure versus various DOFs

Boundary condition

Method

Degrees of freedom

Reference solution [38] with 867 DOFs



75

146

243

363

507



Clamped

MIN3

67.2856

25.8273

17.7147

14.8945

13.5918

12.314

CS-MIN3

29.0137

16.9008

14.2239

13.1852

12.6364

Supported

MIN3

14.169

8.597

7.1727

6.6701

6.4414

6.289



CS-MIN3

9.4622

7.1383

6.5829

6.3688

6.265



Basic load p = M p /L 2.

Figure 7

Convergence of collapse multipliers of the clamped square plate subjected to uniform pressure versus various DOFs.

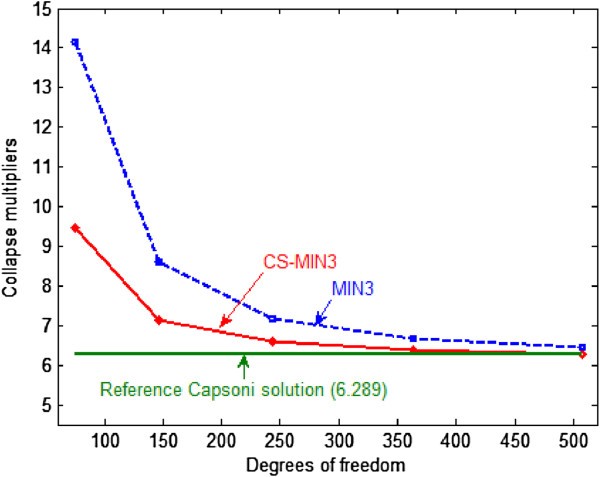

Figure 8

Convergence of collapse multipliers of the supported square plate subjected to uniform pressure versus various DOFs.

Figure 9

Patterns of displacement and plastic energy dissipation of the clamped square plate at collapse by CS-MIN3. (a) Displacement. (b) Plastic energy dissipation.

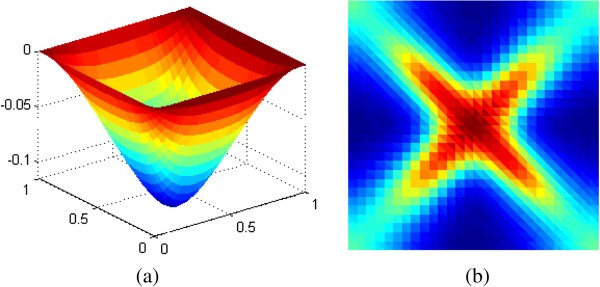

Figure 10

Patterns of displacement and plastic energy dissipation of the supported square plate at collapse by CS-MIN3. (a) Displacement. (b) Supported plate.

Last, the analysis for the solutions of the thin plate by the CS-MIN3 and MIN3 is performed for the clamped square plate by changing the slenderness ratios (L/t) from 5 to 6,250 with the mesh 12 × 12. Convergence of the collapse multipliers of the clamped square plate versus various slenderness ratios (L/t) by the CS-MIN3 and MIN3 is plotted in Figure 11. The Kirchhoff reference results can be found in [33, 37]. As expected, the solutions of the CS-MIN3 converge to the reference Kirchhoff solution [33] when the slenderness ratio is increased to the limit of the thin plate. This hence shows that the CS-MIN3 is free of shear locking in the limit analysis of thin plates. Also, note that the convergence of solutions of MIN3 is much higher than the expected value when the slenderness ratio is increased to the limit of the thin plate. This hence implies that the cell-based strain smoothing technique in the CS-MIN3 is very necessary to improve the instable behavior of the MIN3 in the limit analysis of thin plates.
Figure 11

Convergence of collapse multipliers of the clamped square plate subjected to uniform pressure for various ( L / t ).

Rectangular plate

We now consider a rectangular plate with simply supported supports on all edges and subjected to a uniform out-of-plane pressure loading (with basic load p = M p /(L. H)) as shown in Figure 12a. For this problem, the full plate is considered and the upper bound reference solution using a meshfree method with 1,350 DOFs can be found in [33]. Figure 12b illustrates four forms of discretization using uniform meshes of triangular elements.
Figure 12

A rectangular plate and four forms of discretization. (a) A simply supported rectangular plate. (b) Four discretizations of a quarter of plate using triangular elements.

The convergence of collapse multipliers with respect to the number of degrees of freedom is considered by choosing the thickness of the plate t = 0.01 m, the width L = 2 m, and the ratio L/H = 2. The results by the CS-MIN3 and MIN3 are listed in Table 2 and plotted in Figure 13. In addition, Figure 14 shows the patterns of displacement and plastic energy dissipation at collapse by the CS-MIN3. It is seen that the obtained comments from the square plates related to the convergence and accuracy of the CS-MIN3 in the limit analysis of Mindlin plates are confirmed for the rectangular plates.
Table 2

Convergence of collapse multipliers of clamped rectangular plate subjected to uniform pressure versus various DOFs

Method

Degrees of freedom

Reference solution [33] with 1350 DOFs



135

273

360

510



MIN3

62.2853

39.4181

35.883

33.0316

29.88

CS-MIN3

42.2025

33.4743

31.9999

30.7917



Basic load p = M p /(LH).

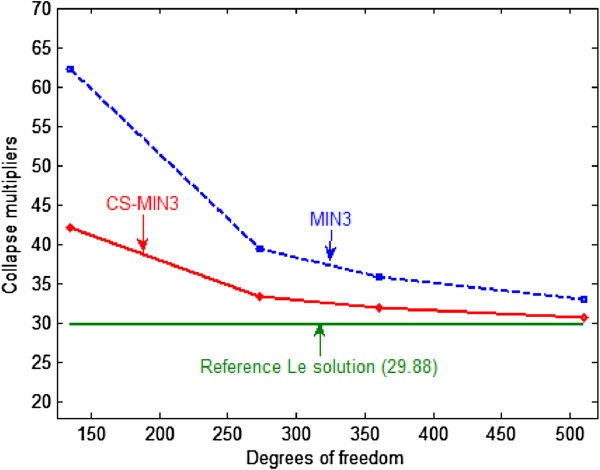

Figure 13

Convergence of collapse multipliers of the supported rectangular plate subjected to uniform pressure versus DOFs.

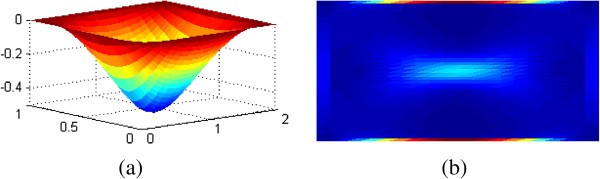

Figure 14

Patterns of displacement and plastic energy dissipation of the supported rectangular plate at collapse by CS-MIN3. (a) Displacement. (b) Plastic energy dissipation.

Rhombic plate

We now consider a clamped rhombic plate with the radius R = 0.5 m and the thickness t = 0.02 m subjected to a uniform out-of-plane pressure loading (with basic load p = M p /R 2) as shown in Figure 15a. For this problem, the full plate is considered and the upper bound reference solutions using quadrilateral elements with 867 degrees of freedom can be found in [38]. Figure 15b illustrates four forms of discretization using uniform meshes of triangular elements.
Figure 15

A rhombic plate and four forms of discretization. (a) A rhombic plate. (b) Four discretizations of a quarter of plate using triangular elements.

The convergence of collapse multipliers of the clamped rhombic plate with respect to the number of degrees of freedom and various skewness angles α is listed in Table 3 and plotted in Figure 16 for two cases of α = 30° and α = 60°. In addition, the patterns of the plastic energy dissipation at collapse by the CS-MIN3 for two cases of α = 30° and α = 60° are shown in Figure 17. Again, it is seen that the comments obtained from two previous examples related to the convergence and accuracy of the CS-MIN3 in the limit analysis of Mindlin plates are confirmed for the rhombic plates.
Table 3

Convergence of collapse multipliers of clamped rhombic plate subjected to uniform pressure versus various DOFs

Skewness angle α

Method

Degrees of freedom

Reference solution [38] with 867 DOFs



75

146

243

363

507



30

CS-MIN3

20.5975

13.109

11.0884

10.2647

9.8309

9.852

MIN3

36.1594

21.4943

16.6904

14.0769

12.4709

45

CS-MIN3

23.8074

14.2608

12.3219

11.4793

11.0211

10.847

MIN3

46.298

24.0417

17.946

14.7981

13.0246

60

CS-MIN3

26.561

15.3363

13.2884

12.3919

11.8979

11.641

MIN3

55.5217

25.6668

18.3164

15.0692

13.3652

75

CS-MIN3

28.4641

16.2358

13.9159

12.9635

12.438

12.143

MIN3

62.9974

26.2878

18.2042

15.0939

13.5819

90

CS-MIN3

29.0137

16.9008

14.2239

13.1852

12.6364

12.314



MIN3

67.2856

25.8273

17.7147

14.8945

13.5918



Basic load p = M p /R 2.

Figure 16

Convergence of collapse multipliers of clamped rhombic plate for two cases. (a) α = 30°. (b) α = 60°.

Figure 17

Patterns of plastic energy dissipation rate of clamped rhombic plate at collapse by CS-MIN3 for two cases. (a) α = 30°. (b) α = 60°.

In addition, an analysis of collapse multipliers of the clamped rhombic plate with respect to various skewness angles α by the CS-MIN3 and MIN3 is illustrated in Figure 18. It is observed that the results of the CS-MIN3 are very close to those of reference solutions, especially for small skewness angles α. These results hence imply that the CS-MIN3 can provide the reliable solutions in the limit analysis of skew Mindlin plates.
Figure 18

Collapse multipliers of clamped rhombic plate versus various skewness angles α by the CS-MIN3 and MIN3.

Circular plate

We now consider a clamped circular plate (radius R = 1m and thickness of plate t = 0.01 m) subjected to a uniform out-of-plane pressure loading (with basic load p = M p /R 2). Due to its symmetry, only the upper right quadrant of the plate is discretized by 294 triangular elements (507 DOFs) as shown in Figure 19. The upper bound reference solutions using quadrilateral elements with 1,041 DOFs can be found in [38].
Figure 19

Discretization by 294 triangular elements of the upper right quadrant of the clamped circular plate. The plate was subjected to a uniform out-of-plane pressure loading.

The convergence of collapse multipliers with respect to the number of degrees of freedom is plotted in Figure 20, and the patterns of displacement and the plastic energy dissipation at collapse by the CS-MIN3 are shown Figure 21. Again, it is seen that the comments obtained from three previous examples related to the convergence and accuracy of the CS-MIN3 in the limit analysis of Mindlin plates are confirmed for the circular plates.
Figure 20

Convergence of collapse multipliers of clamped circular plate subjected to uniform pressure versus various DOFs.

Figure 21

Patterns of displacement and plastic energy dissipation at collapse of clamped circular plate by CS-MIN3. The plate was subjected to uniform pressure. (a) Displacement. (b) Plastic energy dissipation.

Next, due to the availability of the thin plate reference solutions [38] (collapse multiplier = 13.231), we hence perform a convergent analysis of the collapse multipliers with respect to various slenderness ratios (2R/t) by the CS-MIN3 and MIN3. The results are listed in Table 4 and plotted in Figure 22. As expected, the solutions of the CS-MIN3 again converge to the reference solutions when the slenderness ratio is increased to the limit of the thin plate. This hence confirms again that the CS-MIN3 is free of shear locking in the limit analysis of thin plates. Also, note that the convergence of solutions of MIN3 is much higher than the expected value when the slenderness ratio is increased to the limit of the thin plate. This hence confirms again that the cell-based strain smoothing technique in the CS-MIN3 is very necessary to improve the instable behavior of the MIN3 in the limit analysis of thin plates.
Table 4

Convergence of collapse multipliers of clamped circular plate versus various slenderness ratios (2R/t) by CS-MIN3 and MIN3

2 R /t

Methods

Reference solution [38] with 1,041 DOFs



MIN3

CS-MIN3



2

10.768

4.174

4.740

4

14.201

7.840

8.778

8

15.389

11.058

11.893

10

15.547

11.694

12.378

20

15.771

12.699

12.990

40

15.851

12.986

13.126

80

15.909

13.065

13.160

100

15.927

13.077

13.165

500

16.872

13.275

13.231

Figure 22

Convergence of collapse multipliers of clamped circular plate subjected to a uniform pressure versus various (2 R / t ).

Equilateral triangle plate

We now consider an equilateral triangle plate as shown in Figure 23a with the assigned radius R = 1m and thickness t = 0.04m. The plate is clamped on the boundary and subjected to a uniform out-of-plane pressure loading (with basic load p = M p /R 2). For this problem, the full plate is considered and the upper bound reference solutions can be found in [38]. Figure 23b illustrates a discretization using uniform meshes of triangular elements.
Figure 23

Equilateral triangle plate and discretization. (a) Equilateral triangle plate. (b) A discretization using triangular elements of the equilateral triangle plate.

The convergence of collapse multipliers with respect to the number of degrees is listed in Table 5 and plotted in Figure 24, and the patterns of displacement and the plastic energy dissipation at collapse by the CS-MIN3 are shown in Figure 25. Again, it is seen that the obtained comments from four previous examples related to the convergence and accuracy of the CS-MIN3 in the limit analysis of Mindlin plates are confirmed for the equilateral triangle plate.
Table 5

Convergence of collapse multipliers of clamped equilateral triangle plate subjected to uniform pressure versus various DOFs

Method

Degrees of freedom

Reference solution [83]



162

273

360

459



MIN3

15.8781

12.1345

11.1476

10.4487

9.61

CS-MIN3

11.5344

10.6225

10.1818

9.7984



Basic load p = M p /R 2.

Figure 24

Convergence of collapse multipliers of clamped equilateral triangle plate subjected to uniform pressure versus various DOFs.

Figure 25

Patterns of displacement and plastic energy dissipation at collapse of clamped circular plate by CS-MIN3. The plate was subjected to a uniform pressure. (a) Displacement. (b) Plastic energy dissipation.

Conclusions

The paper presents a numerical procedure for the kinematic limit analysis of thick plates governed by the von Mises criterion. The cell-based smoothed three-node Mindlin plate element (CS-MIN3) is combined with a second-order cone optimization programming (SOCP) to determine the upper bound limit load of the Mindlin plates. In the CS-MIN3, each triangular element is divided into three sub-triangles, and in each sub-triangle, the gradient matrices of MIN3 are used to compute the strain rates. Then, the gradient smoothing technique on whole the triangular element is used to smooth the strain rates on these three sub-triangles. The limit analysis problem of Mindlin plates is formulated by minimizing the dissipation power subjected to a set of constraints of boundary conditions and unitary external work. For Mindlin plates, the dissipation power is computed on both the middle plane and the thickness of the plate. This minimization problem can then be transformed into a form suitable for optimum solution using the SOCP. Through the formulation and numerical examples, some concluding remarks can be drawn as follows:
  1. 1.

    The CS-MIN3 uses only three-node triangular elements that are much easily generated automatically for arbitrary complex geometrical domains.


  2. 2.

    The CS-MIN3 can provide reliable upper bound collapse multipliers for both thick and thin plates.


  3. 3.

    The solutions of the CS-MIN3 converge from the upper bound, and the CS-MIN3 is free of shear locking in the limit analysis of thin plates.


  4. 4.

    Compared to the MIN3, the CS-MIN3 is more accurate in the limit analysis of thick plates and more stable in the limit analysis of thin plates.


  5. 5.

    The forms of the yield lines by the CS-MIN3 are identified reasonably from the dissipation patterns.



In addition, the extension of the present CS-MIN3 for the limit analysis of flat shells using triangular elements is very promising.

Notes

Declarations

Acknowledgements

This work was supported by Vietnam National Foundation for Science & Technology Development (NAFOSTED), Ministry of Science & Technology, under the basic research program (Project No.: 107.02-2012.05).

Authors’ Affiliations

(1)
Division of Computational Mathematics and Engineering (CME), Institute for Computational Science (INCOS), Ton Duc Thang University
(2)
Department of Mechanics, Faculty of Mathematics and Computer Science, VNUHCM University of Science
(3)
Department of Civil Engineering, VNUHCM International University

References

  1. Hodge PG: Limit analysis of rotationally symmetric plates and shells. Englewood Cliffs: Prentice-Hall; 1963.MATHGoogle Scholar
  2. Save MA, Massonnet CE: Plastic analysis and design of plates, shells and disks. North-Holland, Amsterdam; 1972.MATHGoogle Scholar
  3. Zyczkowski M: Combined loadings in the theory of plasticity. Wasarwa, Poland: Polish Scientific, PWN and Nijhoff; 1981.MATHGoogle Scholar
  4. Xu BY, Liu XS: Plastic limit analysis of structures. Beijing: China Architecture & Building Press; 1985.Google Scholar
  5. Lubliner J: Plasticity theory. New York: Macmillan; 1990.MATHGoogle Scholar
  6. Yu MH, Ma GW, Li JC: Structural plasticity limit, shakedown and dynamic plastic analyses of structures. New York: Springer; 2009.Google Scholar
  7. PhGJr H, Belytschko T: Numerical methods for the limit analysis of plates. ASME J Appl Mech 1968, 35:796–802.View ArticleGoogle Scholar
  8. Nguyen HD: Direct limit analysis via rigid-plastic finite elements. Comput Methods Appl Mech Eng 1976, 8:81–116.MathSciNetView ArticleMATHGoogle Scholar
  9. Christiansen E, Kortanek KO: Computation of the collapse state in limit analysis using the LP affine scaling algorithm. J Comput Appl Math 1991, 34:47–63.View ArticleMATHGoogle Scholar
  10. Zouain N, Herskovits J, Borges LA, Feijóo RA: An iterative algorithm for limit analysis with nonlinear yield functions. Int J Solids Struct 1993, 30:1397–1417.MathSciNetView ArticleMATHGoogle Scholar
  11. Liu YH, Zen ZZ, Xu BY: A numerical method for plastic limit analysis of 3-D structures. Int J Solids Struct 1995, 32:1645–1658.View ArticleMATHGoogle Scholar
  12. Capsoni A, Corradi L: A finite element formulation of the rigid-plastic limit analysis problem. Int J Numer Methods Eng 1997, 40:2063–2086.View ArticleMATHGoogle Scholar
  13. Christiansen E, Andersen KD: Computation of collapse states with von Mises type yield condition. Int J Numer Methods Eng 1999, 46:1185–1202.MathSciNetView ArticleMATHGoogle Scholar
  14. Corradi L, Panzeri N: A triangular finite element for sequential limit analysis of shells. Adv Eng Software 2004, 35:633–643.View ArticleMATHGoogle Scholar
  15. Le VC, Nguyen-Xuan H, Askes H, Bordas S, Rabczuk T, Nguyen-Vinh H: A cell-based smoothed finite element method for kinematic limit analysis. Int J Numer Methods Eng 2010, 83:1651–1674.MathSciNetView ArticleMATHGoogle Scholar
  16. Sloan SW: A steepest edge active set algorithm for solving sparse linear programming problems. Int J Numer Methods Eng 1988, 26:2671–2685.MathSciNetView ArticleMATHGoogle Scholar
  17. Andersen KD, Christiansen E: Limit analysis with the dual affine scaling algorithm. J Comput Appl Math 1995, 59:233–243.MathSciNetView ArticleMATHGoogle Scholar
  18. Pastor J, Thai TH, Francescato P: Interior point optimization and limit analysis: an application. Commun Numer Methods Eng 2003, 19:779–785.View ArticleMATHGoogle Scholar
  19. Lyamin AV, Sloan SW: Upper bound analysis using linear finite elements and non-linear programming. Int J Numer Anal Methods Geomech 2002, 26:181–216.View ArticleMATHGoogle Scholar
  20. Andersen KD, Christiansen E, Overton ML: Computing limit loads by minimizing a sum of norms. SIAM J Sci Comput 1998, 19:1046–1062.MathSciNetView ArticleMATHGoogle Scholar
  21. Krabbenhoft K, Damkilde L: A general non-linear optimization algorithm for lower bound limit analysis. Int J Numer Methods Eng 2003, 56:165–184.View ArticleMATHGoogle Scholar
  22. Tin-Loi F, Ngo NS: Performance of the p -version finite element method for limit analysis. Int J Mech Sci 2003, 45:1149–1166.View ArticleMATHGoogle Scholar
  23. Andersen KD, Christiansen E, Overton ML: An efficient primal-dual interior-point method for minimizing a sum of Euclidean norms. SIAM J Sci Comput 2001, 22:243–262.MathSciNetView ArticleMATHGoogle Scholar
  24. Andersen ED, Roos C, Terlaky T: On implementing a primal-dual interior-point method for conic quadratic programming. Math Program 2003, 95:249–277.MathSciNetView ArticleMATHGoogle Scholar
  25. Mosek: The MOSEK optimization toolbox for MATLAB manual. Mosek ApS 2008. http://www.mosek.com Google Scholar
  26. Krabbenhoft K, Lyamin AV, Sloan SW: Formulation and solution of some plasticity problems as conic programs. Int J Solids Struct 2006, 44:1533–1549.View ArticleMATHGoogle Scholar
  27. Makrodimopoulos A, Martin CM: Upper bound limit analysis using simplex strain elements and second-order cone programming. Int J Num Anal Methods Geomech 2007, 31:825–865.View ArticleMATHGoogle Scholar
  28. Christiansen E, Larsen S: Computations in limit analysis for plastic plates. Int J Numer Methods Eng 1983, 19:169–184.View ArticleMATHGoogle Scholar
  29. Turco E, Caracciolo P: Elasto-plastic analysis of Kirchhoff plates by high simplicity finite elements. Comput Methods Appl Mech Eng 2000, 10:691–706.View ArticleMATHGoogle Scholar
  30. Corradi L, Vena P: Limit analysis of orthotropic plates. Int J Plast 2003, 19:1543–1566.View ArticleMATHGoogle Scholar
  31. Corradi L, Panzeri N: Post-collapse analysis of plates and shells based on a rigid-plastic version of the TRIC element. Comput Methods Appl Mech Eng 2003, 192:3747–3775.View ArticleMATHGoogle Scholar
  32. Tran TN, Kreissig R, Staat M: Probabilistic limit and shakedown analysis of thin plates and shells. Struct Saf 2009, 31:1–18.View ArticleGoogle Scholar
  33. Le VC, Gilbert M, Askes H: Limit analysis of plates using the EFG method and second-order cone programming. Int J Numer Methods Eng 2009, 78:1532–1552.MathSciNetView ArticleMATHGoogle Scholar
  34. Le VC, Askes H, Gilbert M: Adaptive element-free Galerkin method applied to the limit analysis of plates. Comput Methods Appl Mech Eng 2010, 199:2487–2496.MathSciNetView ArticleMATHGoogle Scholar
  35. Le VC, Nguyen-Xuan H, Nguyen-Dang H: Upper and lower bound limit analysis of plates using FEM and second-order cone programming. Comput Struct 2010, 88:65–73.View ArticleGoogle Scholar
  36. Zhou S, Liu Y, Chen S: Upper bound limit analysis of plates utilizing the C1 natural element method. Comput Mech 2010. doi:10.1007/s00466–012–0688–8Google Scholar
  37. Capsoni A, Corradi L: Limit analysis of plates - a finite element formulation. Struct Eng Mech 1999, 8:325–341.View ArticleGoogle Scholar
  38. Capsoni A, Vicente da Silva M: A finite element formulation of Mindlin plates for limit analysis. Int J Num Methods Biomed Eng 2011, 27:143–156.MathSciNetView ArticleMATHGoogle Scholar
  39. Liu GR, Nguyen Thoi T: Smoothed finite element methods. New York: CRC Press, Taylor and Francis Group; 2010.View ArticleGoogle Scholar
  40. Chen JS, Wu CT, Yoon S, You Y: A stabilized conforming nodal integration for Galerkin mesh-free methods. Int J Numer Methods Eng 2001, 50:435–466.View ArticleMATHGoogle Scholar
  41. Liu GR, Dai KY, Trung NT: A smoothed finite element for mechanics problems. Comp Mech 2007, 39:859–877.View ArticleMATHGoogle Scholar
  42. Trung NT, Liu GR, Dai KY, Lam KY: Selective smoothed finite element method. Tsinghua Sci Technol 2007,12(5):497–508.MathSciNetView ArticleGoogle Scholar
  43. Liu GR, Trung NT, Nguyen-Xuan H, Dai KY, Lam KY: On the essence and the evaluation of the shape functions for the smoothed finite element method (SFEM). Int J Numer Methods Eng 2009, 77:1863–1869.View ArticleMATHGoogle Scholar
  44. Liu GR, Nguyen-Thoi T, Nguyen-Xuan H, Lam KY: A node-based smoothed finite element method (NS-FEM) for upper bound solutions to solid mechanics problems. Comput Struct 2009, 87:14–26.View ArticleGoogle Scholar
  45. Nguyen-Thoi T, Liu GR, Nguyen-Xuan H, Nguyen-Tran C: Adaptive analysis using the node-based smoothed finite element method (NS-FEM). Commun Numer Methods Eng 2011, 27:198–218.MathSciNetMATHGoogle Scholar
  46. Nguyen-Thoi T, Liu GR, Nguyen-Xuan H: Additional properties of the node-based smoothed finite element method (NS-FEM) for solid mechanics problems. Int J Comp Methods 2009, 6:633–666.MathSciNetView ArticleMATHGoogle Scholar
  47. Liu GR, Nguyen-Thoi T, Lam KY: An edge-based smoothed finite element method (ES-FEM) for static and dynamic problems of solid mechanics. J Sound Vib 2009, 320:1100–1130.View ArticleGoogle Scholar
  48. Nguyen-Thoi T, Liu GR, Nguyen-Xuan H: An n -sided polygonal edge-based smoothed finite element method (nES-FEM) for solid mechanics. Commun Numer Methods Eng 2011, 27:1446–1472.MathSciNetMATHGoogle Scholar
  49. Nguyen-Thoi T, Liu GR, Lam KY, Zhang GY: A face-based smoothed finite element method (FS-FEM) for 3D linear and nonlinear solid mechanics problems using 4-node tetrahedral elements. Int J Numer Methods Eng 2009, 78:324–353.MathSciNetView ArticleMATHGoogle Scholar
  50. Liu GR, Nguyen-Thoi T, Lam KY: A novel alpha finite element method (αFEM) for exact solution to mechanics problems using triangular and tetrahedral elements. Comput Methods Appl Mech Eng 2008, 197:3883–3897.MathSciNetView ArticleMATHGoogle Scholar
  51. Liu GR, Nguyen-Thoi T, Lam KY: A novel FEM by scaling the gradient of strains with factor α (αFEM). Comput Mech 2009, 43:369–391.MathSciNetView ArticleMATHGoogle Scholar
  52. Liu GR, Nguyen-Xuan H, Nguyen-Thoi T, Xu X: A novel Galerkin-like weakform and a superconvergent alpha finite element method (SαFEM) for mechanics problems using triangular meshes. J Comput Phys 2009, 228:4055–4087.MathSciNetView ArticleMATHGoogle Scholar
  53. Liu GR, Nguyen-Xuan H, Nguyen-Thoi T: A variationally consistent αFEM (VCαFEM) for solid mechanics problems. Int J Numer Methods Eng 2011, 85:461–497.MathSciNetView ArticleMATHGoogle Scholar
  54. Liu GR, Nguyen-Thoi T, Dai KY, Lam KY: Theoretical aspects of the smoothed finite element method (SFEM). Int J Numer Methods Eng 2007, 71:902–930.MathSciNetView ArticleMATHGoogle Scholar
  55. Liu GR, Nguyen-Xuan H, Nguyen-Thoi T: A theoretical study on NS/ES-FEM: properties, accuracy and convergence rates. Int J Numer Methods Eng 2010, 84:1222–1256.MathSciNetView ArticleMATHGoogle Scholar
  56. Nguyen-Xuan H, Nguyen-Thoi T: A stabilized smoothed finite element method for free vibration analysis of Mindlin-Reissner plates. Int J Num Methods Biomed Eng 2009, 25:882–906.MathSciNetMATHGoogle Scholar
  57. Cui XY, Liu GR, Li GY, Zhao X, Nguyen-Thoi T, Sun GY: A smoothed finite element method (SFEM) for linear and geometrically nonlinear analysis of plates and shells. CMES-Comp Model Eng Sci 2008, 28:109–125.MathSciNetMATHGoogle Scholar
  58. Nguyen-Xuan H, Rabczuk T, Nguyen-Thanh N, Nguyen-Thoi T, Bordas S: A node-based smoothed finite element method (NS-FEM) with stabilized discrete shear gap technique for analysis of Reissner-Mindlin plates. Comput Mech 2010,46(5):679–701.MathSciNetView ArticleMATHGoogle Scholar
  59. Nguyen-Xuan H, Loc TV, Chien TH, Nguyen-Thoi T: Analysis of functionally graded plates by an efficient finite element method with node-based strain smoothing. Thin-Walled Struct 2012, 54:1–18.View ArticleGoogle Scholar
  60. Thai-Hoang C, Loc T-V, Tran-Trung D, Nguyen-Thoi T, Nguyen-Xuan H: Analysis of laminated composite plates using higher-order shear deformation plate theory and node-based smoothed discrete shear gap method. Appl Math Model 2012, 36:5657–5677.MathSciNetView ArticleMATHGoogle Scholar
  61. Nguyen-Xuan H, Tran-Vinh L, Nguyen-Thoi T, Vu-Do HC: Analysis of functionally graded plates using an edge-based smoothed finite element method. Compos Struct 2011,93(11):3019–3039.View ArticleGoogle Scholar
  62. Phan-Dao HH, Nguyen-Xuan H, Thai-Hoang C, Nguyen-Thoi T, Rabczuk T: An edge-based smoothed finite element method for analysis of laminated composite plates. Int J Comp Methods 2013,10(1):1340005.MathSciNetView ArticleGoogle Scholar
  63. Nguyen-Thoi T, Phung-Van P, Nguyen-Xuan H, Thai-Hoang H: A cell-based smoothed discrete shear gap method using triangular elements for static and free vibration analyses of Reissner–Mindlin plates. Int J Numer Methods Eng 2012,91(7):705–741.MathSciNetView ArticleMATHGoogle Scholar
  64. Trung NT, Bui-Xuan T, Phung-Van P, Nguyen-Hoang S, Nguyen-Xuan H: An edge-based smoothed three-node Mindlin plate element (ES-MIN3) for static and free vibration analyses of plates. KSCE J Civ Eng 2013. in pressGoogle Scholar
  65. Phung-Van P, Nguyen-Thoi T, Tran V, Nguyen-Xuan H: A cell-based smoothed discrete shear gap method (CS-FEM-DSG3) based on the C 0 -type higher-order shear deformation theory for static and free vibration analyses of functionally graded plates. Comput Mater Sci 2013, 79:857–872.View ArticleGoogle Scholar
  66. Nguyen-Thoi T, Bui-Xuan T, Phung-Van P, Nguyen-Xuan H, Ngo-Thanh P: Static, free vibration and buckling analyses of stiffened plates by CS-FEM-DSG3 using triangular elements. Comput Struct 2013, 125:100–113.View ArticleGoogle Scholar
  67. Nguyen-Thoi T, Phung-Van P, Thai-Hoang C, Nguyen-Xuan H: A cell-based smoothed discrete shear gap method (CS-FEM-DSG3) using triangular elements for static and free vibration analyses of shell structures. Int J Mech Sci 2013, 74:32–45.View ArticleGoogle Scholar
  68. Nguyen-Xuan H, Liu GR, Thai-Hoang C, Nguyen-Thoi T: An edge-based smoothed finite element method with stabilized discrete shear gap technique for analysis of Reissner-Mindlin plates. Comput Methods Appl Mech Eng 2009, 199:471–489.MathSciNetView ArticleMATHGoogle Scholar
  69. Nguyen-Xuan H, Liu GR, Nguyen-Thoi T, Nguyen-Tran C: An edge-based smoothed finite element method (ES-FEM) for analysis of two-dimensional piezoelectric structures. Smart Mater Struct 2009, 18:1–12.View ArticleGoogle Scholar
  70. Phung-Van P, Nguyen-Thoi T, Le-Dinh T, Nguyen-Xuan H: Static, free vibration analyses and dynamic control of composite plates integrated with piezoelectric sensors and actuators by the cell-based smoothed discrete shear gap method (CS-FEM-DSG3). Smart Mater Struct 2013, 22:095026.View ArticleGoogle Scholar
  71. Liu GR, Chen L, Nguyen-Thoi T, Zeng K, Zhang GY: A novel singular node-based smoothed finite element method (NS-FEM) for upper bound solutions of cracks. Int J Numer Methods Eng 2010, 83:1466–1497.MathSciNetView ArticleMATHGoogle Scholar
  72. Nguyen-Thoi T, Liu GR, Vu-Do HC, Nguyen-Xuan H: An edge-based smoothed finite element method (ES-FEM) for visco-elastoplastic analyses of 2D solids using triangular mesh. Comput Mech 2009, 45:23–44.MathSciNetView ArticleMATHGoogle Scholar
  73. Nguyen-Thoi T, Vu-Do HC, Rabczuk T, Nguyen-Xuan H: A node-based smoothed finite element method (NS-FEM) for upper bound solution to visco-elastoplastic analyses of solids using triangular and tetrahedral meshes. Comput Methods Appl Mech Eng 2010, 199:3005–3027.MathSciNetView ArticleMATHGoogle Scholar
  74. Nguyen-Thoi T, Liu GR, Vu-Do HC, Nguyen-Xuan H: A face-based smoothed finite element method (FS-FEM) for visco-elastoplastic analyses of 3D solids using tetrahedral mesh. Comput Methods Appl Mech Eng 2009, 198:3479–3498.View ArticleMATHGoogle Scholar
  75. Tran TN, Liu GR, Nguyen-Xuan H, Nguyen-Thoi T: An edge-based smoothed finite element method for primal-dual shakedown analysis of structures. Int J Numer Methods Eng 2010, 82:917–938.MathSciNetMATHGoogle Scholar
  76. Nguyen-Xuan H, Rabczuk T, Nguyen-Thoi T, Tran TN, Nguyen-Thanh N: Computation of limit and shakedown loads using a node-based smoothed finite element method. Int J Numer Methods Eng 2012, 90:287–310.MathSciNetView ArticleMATHGoogle Scholar
  77. Le-Van C, Nguyen-Xuan H, Askes H, Rabczuk T, Nguyen-Thoi T: Computation of limit load using edge-based smoothed finite element method and second-order cone programming. Int J Comp Methods 2013,10(1):1340005.MathSciNetView ArticleGoogle Scholar
  78. Nguyen-Thoi T, Phung-Van P, Rabczuk T, Nguyen-Xuan H, Le-Van C: Free and forced vibration analysis using the n -sided polygonal cell-based smoothed finite element method ( n CS-FEM). Int J Comp Methods 2013,10(1):1340008.MathSciNetView ArticleGoogle Scholar
  79. Nguyen-Thoi T, Phung-Van P, Rabczuk T, Nguyen-Xuan H, Le-Van C: An application of the ES-FEM in solid domain for dynamic analysis of 2D fluid-solid interaction problems. Int J Comp Methods 2013,10(1):1340003.MathSciNetView ArticleGoogle Scholar
  80. Nguyen-Thoi T, Phung-Van P, Luong-Van H, Nguyen-Van H, Nguyen-Xuan H: A cell-based smoothed three-node Mindlin plate element (CS-MIN3) for static and free vibration analyses of plates. Comput Mech 2013, 51:65–81.MathSciNetView ArticleMATHGoogle Scholar
  81. Tessler A, Hughes TJR: A three-node Mindlin plate element with improved transverse shear. Comp Methods Appl Mech Eng 1985, 50:71–101.View ArticleMATHGoogle Scholar
  82. Makrodimopoulos A, Martin CM: Upper bound limit analysis using discontinuous quadratic displacement fields. Commun Numer Methods Eng 2008, 24:911–927.MathSciNetView ArticleMATHGoogle Scholar
  83. Fox EN: Limit analysis for plates: the exact solution for a clamped square plate of isotropic homogeneous material obeying square yield criterion and loaded by uniform pressure. Philos Trans Royal Soc A 1974, 277:121–155.View ArticleMATHGoogle Scholar

Copyright

© Trung et al.; licensee Springer. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited.
